Interior deck coating system (OS 8)

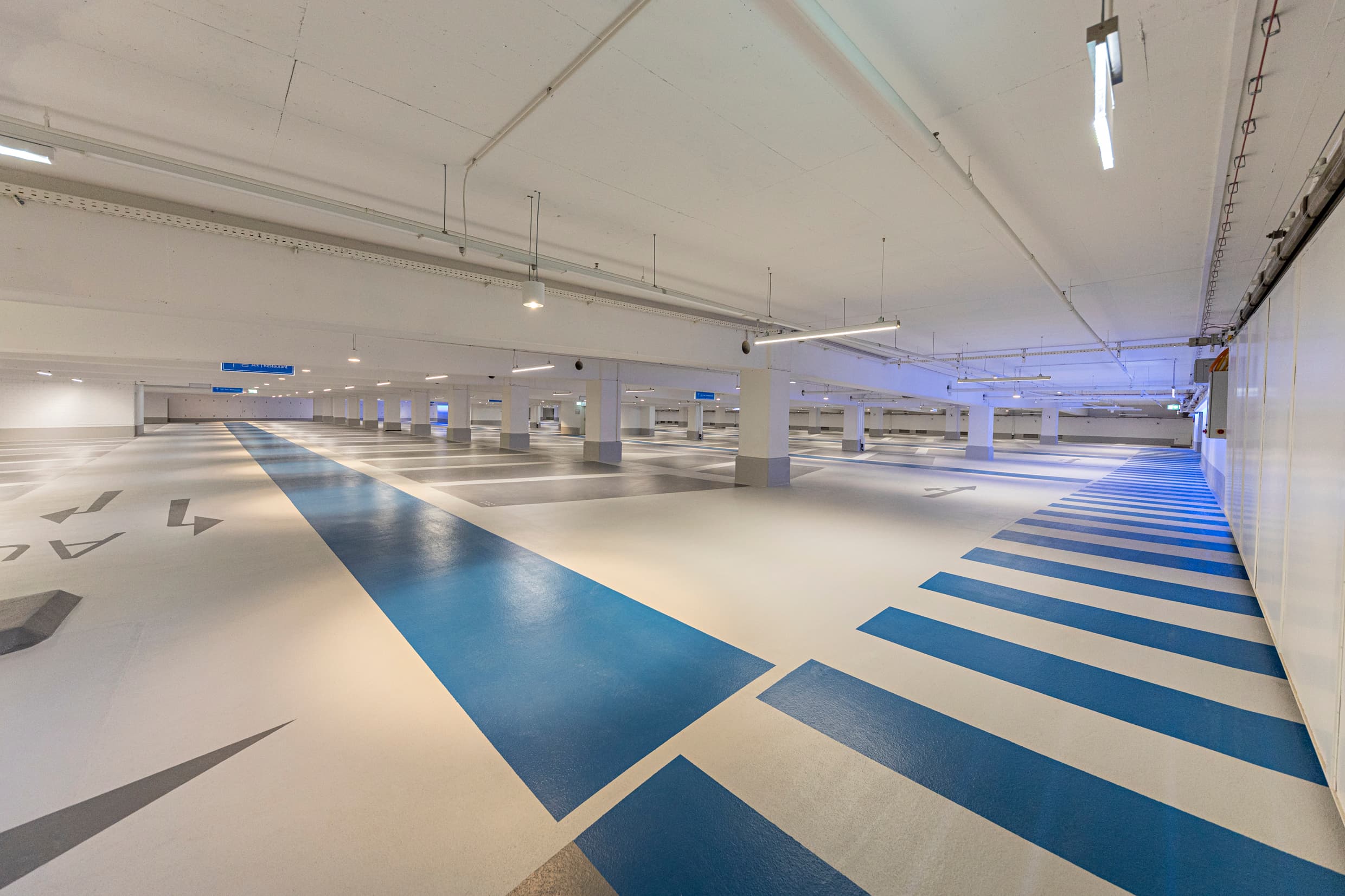

Triflex CPS-F is a polyurethane (PUR) and epoxy resin (EP) based watertight coating system. This system has been specially developed for inner decks and underground car parks, and offers an enhanced non-slip finish. Junctions, joints and details are carried out as fleece reinforced waterproofing.
System build-up Triflex CPS-F
Primer
Triflex Glass Primer
Triflex Glass Primer is used as a primer on unpolished glass substrates under various Triflex systems.
Triflex Metal Primer
Triflex Metal Primer is used as a primer on various metals and rusty substrates.
Triflex Pox Primer 116+
Triflex Pox Primer 116+ is used as a primer, a filling primer and a roughness depth levelling material, primarily in the Triflex CPS-F system.
Quartz sand, size 0.3–0.8 mm
Detailed information can be found in the planning documents.
Coating
Triflex Than RG 560
Triflex Than RG 560 is used as a coating (wearing/dressing layer) in the Triflex CPS-F system.
Quartz sand, size 0.3–0.8 mm
Detailed information can be found in the planning documents.
Finish
Triflex Pox Finish 170
Triflex Pox Finish 170 is used as a finish in the Triflex CPS-F system.
Other/optional system components
Triflex Special Fleece
Triflex Special Fleece is used for reinforcement and layer thickness control with Triflex PMMA and PUR systems.
Triflex Cryl Paste
Triflex Cryl Paste is used to level out any unevenness in the substrate and any fleece overlaps or depressions in Triflex systems.
Triflex FlexFiller
Triflex FlexFiller is used in the sealing of joints.
Triflex Pox Mortar
Triflex Pox Mortar is a mixture of Triflex Pox R 100 or alternatively Triflex Pox Primer 116+ and flame-dried quartz sand.
- To apply thin mortar layers
- To apply thick mortar layers
- To apply repair mortar
Triflex Than R 557 thix
Triflex Than R 557 thix is used for waterproofing details and wall junctions in the Triflex CPS-F system.
Triflex Cleaner
Triflex Cleaner is used with all Triflex PMMA, EP, PU and PUA products. It is used to pre-treat substrates and to degrease metal when overcoating or if work is interrupted. In addition, soiled tools can be cleaned with Triflex Cleaner.
Triflex Support Strip
Triflex Support Strip is used as a support layer for the creation of a loop in settlement joints.
PE round sealing band
Details can be found in the planning documents.
Cover plate
Details can be found in the planning documents.
Triflex Powder Thixo
Triflex Powder Thixo is used to modify the thixotropy of Triflex PMMA, EP and PUR systems in order to allow the coating of vertical surfaces.
Triflex UltraCleaner
Triflex UltraCleaner is used as a universal cleaning and degreasing agent for treating Triflex surfaces.
System drawings
Delivering solutions together: Do you have technical queries or need special true-to-scale CAD drawings instead of system drawings for your planning work? Our CAD specialists will be happy to help you.
Application steps
Exceptional quality. Exceptional conformity.
Triflex products give you complete peace of mind whatever the application. We regard continuous internal and external quality controls in production and extensive field tests prior to market launch as essential.
