Triflex BIS: balcony waterproofing on top of thermal insulation
Triflex BIS is an insulation system specially developed for balconies and roof terraces, which is used in conjunction with the Triflex BTS-P Balcony Waterproofing System. Older types of buildings in particular are often real energy guzzlers. All-concrete balcony slabs, which transition into heated rooms with no thermal break, cause thermal bridging with all its adverse consequences such as damp and mould. Good thermal insulation can help to eliminate the effect of differences in indoor and outdoor temperature on the living environment. Thermal insulation has the added benefit of improving the living environment and thus the residents' comfort. Heating costs fall because less energy is required.

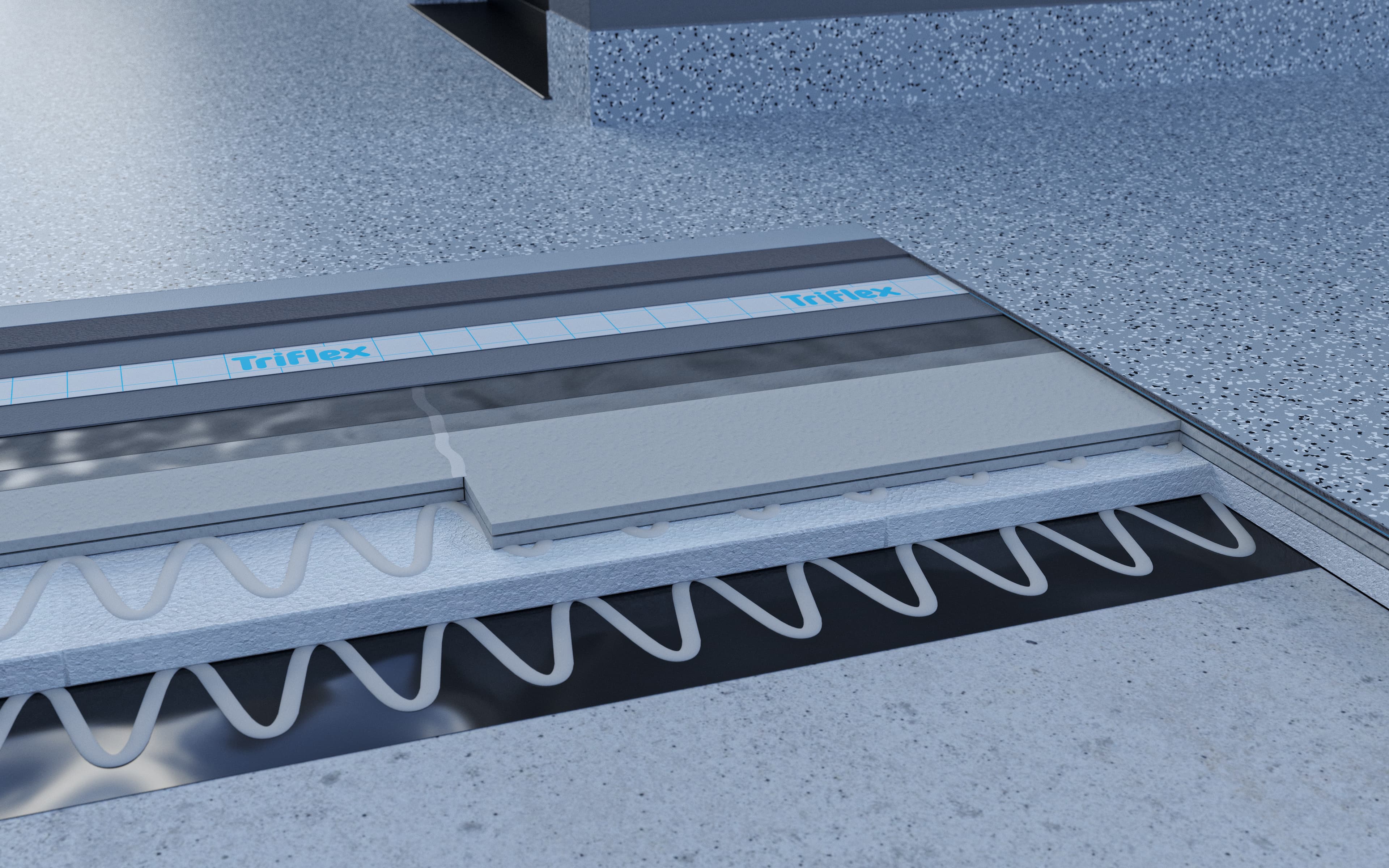

System build-up Triflex BIS
Vapour barrier
Vapour barrier
When selecting the vapour barrier, a bituminous, self-adhesive product should therefore be selected in accordance with DIN EN 13970.
Insulation adhesive
Insulation adhesive Teroson EF TK 395
Apply polyurethane insulation adhesive as directed by the manufacturer.
Thermal insulation
Thermal insulation
Expanded polystyrene (EPS) boards or polyurethane (PUR) insulation boards with shiplap are used as insulation. The thickness of the layer of insulation is determined in accordance with DIN EN 13163 and DIN 4108 “Thermal insulation products for buildings”, as well as the relevant technical code of practice and the thermal insulation regulations.
Insulation adhesive
Insulation adhesive Teroson EF TK 395
Apply polyurethane insulation adhesive as directed by the manufacturer.
Load distribution
Triflex Cryl Primer 276
Triflex Cryl Primer 276 is used as a primer on absorbent substrates, such as concrete or screed, for Triflex systems with a PMMA base.
Triflex Cryl Paste
Triflex Cryl Paste is used to level out any unevenness in the substrate and any fleece overlaps or depressions in Triflex systems.
Wood-fibre cement board
The installation board is used in the Triflex BIS – Balcony Insulation System.
Triflex BTS-P waterproofing system
Triflex Cryl Finish 205
Triflex Cryl Finish 205 is used as a finish on dressed and undressed Triflex PMMA systems to increase chemical and mechanical resistance.
Triflex Cryl Primer 222
Triflex Cryl Primer 222 is used as a primer on asphalt for Triflex systems with a PMMA resin base.
Triflex Cryl Primer 276
Triflex Cryl Primer 276 is used as a primer on absorbent substrates, such as concrete or screed, for Triflex systems with a PMMA base.
Triflex Glass Primer
Triflex Glass Primer is used as a primer on unpolished glass substrates under various Triflex systems.
Triflex Metal Primer
Triflex Metal Primer is used as a primer on various metals and rusty substrates.
Triflex Pox R 100
Triflex Pox R 100 is used as a primer and for the production of:
- Scraper fillers
- Thin-layer mortar coverings
- Thick-layer mortar coverings
- Repair mortar
Triflex ProDetail
Triflex ProDetail is used for details on flat roofs, balconies, terraces and covered walks as well as parking decks.
Triflex Special Fleece
Triflex Special Fleece is used for reinforcement and layer thickness control with Triflex PMMA and PUR systems.
Triflex ProFloor
Triflex ProFloor is used as a high-quality and durable coating for heavy-duty surfaces in the Triflex BTS-P, Triflex BFS and Triflex TSS balcony systems.
Triflex Cryl Finish S1
Triflex Cryl Finish S1 is used as a finish on Triflex BTS-P (S1), Triflex BFS (S1) and Triflex TSS (S1) systems.
Triflex Micro Chips
Triflex Micro Chips are used for applying “Chips Design” surface designs with Triflex systems. They are a decorative dressing material with an acrylate copolymer base.
Triflex Colour Mix
Triflex Colour Mix is used for the surface treatment of Triflex systems.
Triflex ProTerra
Triflex ProTerra is a high-quality and durable surface waterproofing product for use on balconies, terraces and covered walks in both new buildings and refurbishments. Triflex ProTerra can be used with the Triflex BTS-P, Triflex BWS and Triflex Stone Design systems.
Quartz sand 0.7-1.2 mm
Details can be found in the planning documents.
Quarzsand 0,2-0,6 mm
Detailinformationen sind den Planungsunterlagen zu entnehmen.
Our Triflex BTS-P waterproofing system in detail.
Specifications & System drawings
Application steps
Exceptional quality. Exceptional conformity.
Triflex products give you complete peace of mind whatever the application. We regard continuous internal and external quality controls in production and extensive field tests prior to market launch as essential.
