Field report: RWE Hamm power plant

Find out more

Key facts: ProTect application on roof surface

Location
Hamm
Completion
2016
Area
1,600 m²
Authorised Contractor
Stromberg Oberflächentechnik GmbH & Co. KG, Duisburg

RWE Hamm power plant

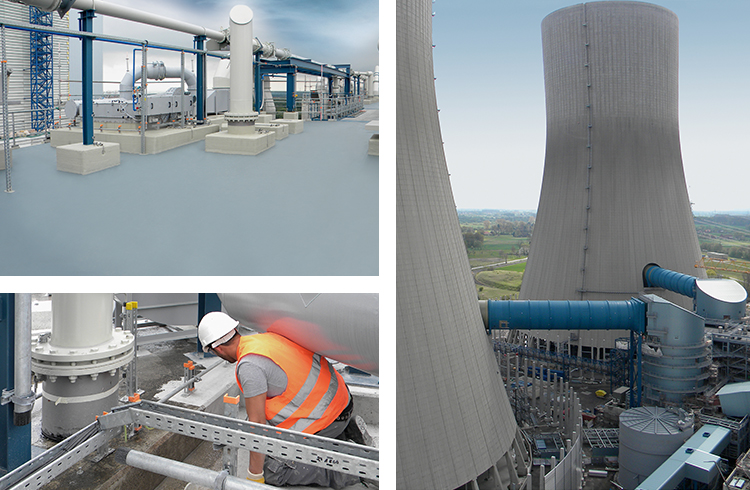

RWE Power AG is currently building one of the most modern coal-fired power plants in the world with an output of two times 800 MW in Hamm, Westphalia. The twin-unit plant will be built by RWE Technology GmbH, put into operation and taken to commercial operation. The power plant includes a complex of holding and fly ash silos in which the fly ash and limestone powder are stored and loaded. In order to protect the roofs of the reinforced concrete silos from the effects of the weather and to integrate a large number of details seamlessly into the waterproofing surface, skilled contractors from the Stromberg company in Duisburg have waterproofed these with
Triflex ProTect. The roof surface waterproofing system based on polymethyl methacrylate (PMMA) permanently waterproofs existing cracks as well as material transitions. Stefan Lindner, project manager for civil engineering at RWE Technology, is impressed by the high-performance waterproofing system and the flexible and skilled construction management of the liquid plastics manufacturer Triflex.

Refurbishment requirements

  • Sealing material transitions steel/reinforced concrete
  • Sealing changing geometries, e.g. horizontal, flat to cylindrical
  • Recurring maintenance intervals
  • Sealing cracks in sloping concrete
  • Sealing dowelled fixing points
  • Refurbishment under changeable weather conditions
  • Highest safety precautions

Refurbishment steps overview

  1. Abrading the concrete substrate
  2. Priming with Triflex Cryl Primer 276
  3. Waterproofing with Triflex ProTect with quartz sand dressing 0.7–1.2 mm and Triflex ProDetail
  4. Waterproofing with Triflex Cryl Finish 205 in blue-grey

THE HIGH STEAM PARAMETERS AND THE THERMODYNAMIC OPTIMISATION OF THE WATER-STEAM PROCESS CAN ACHIEVE A NET ELECTRICAL EFFICIENCY OF ABOUT 46%.
